| Brand: | YUKA |
| Product Type: | Air Filtration |
| Product Series: | YD/ HG Series |
| Model No.: | DPG |
| Port Size: | φ8mm |
| Materials of Construction: | Plastic |
| Operating pressure: | 1.5 to 16 bar |
| Operating Temperature: | 2 to 80 ℃ |
| Housing Service Life | 1 years |
| Origin | Shenzhen, China |

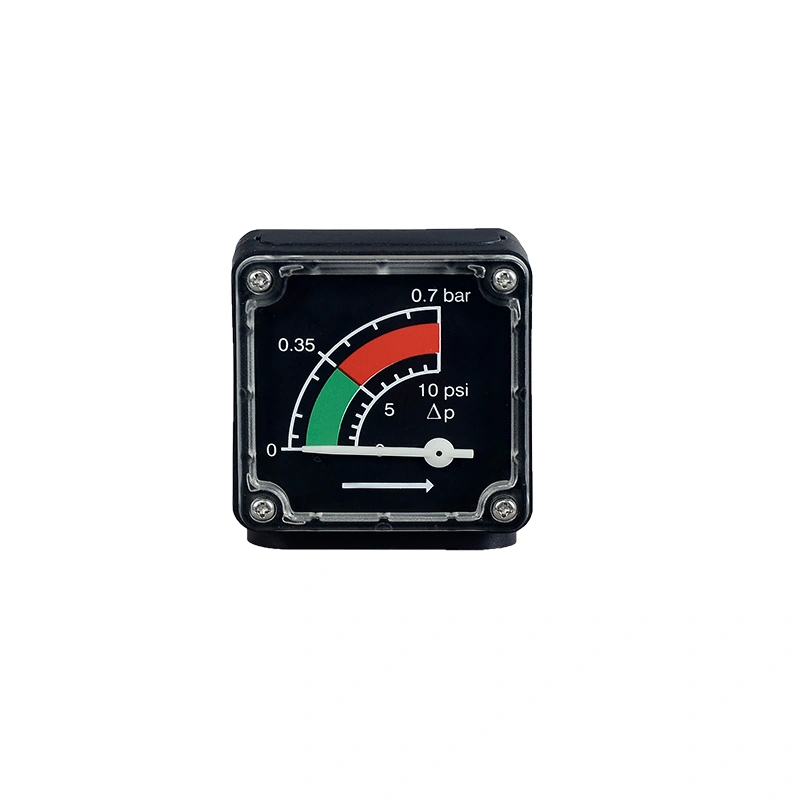

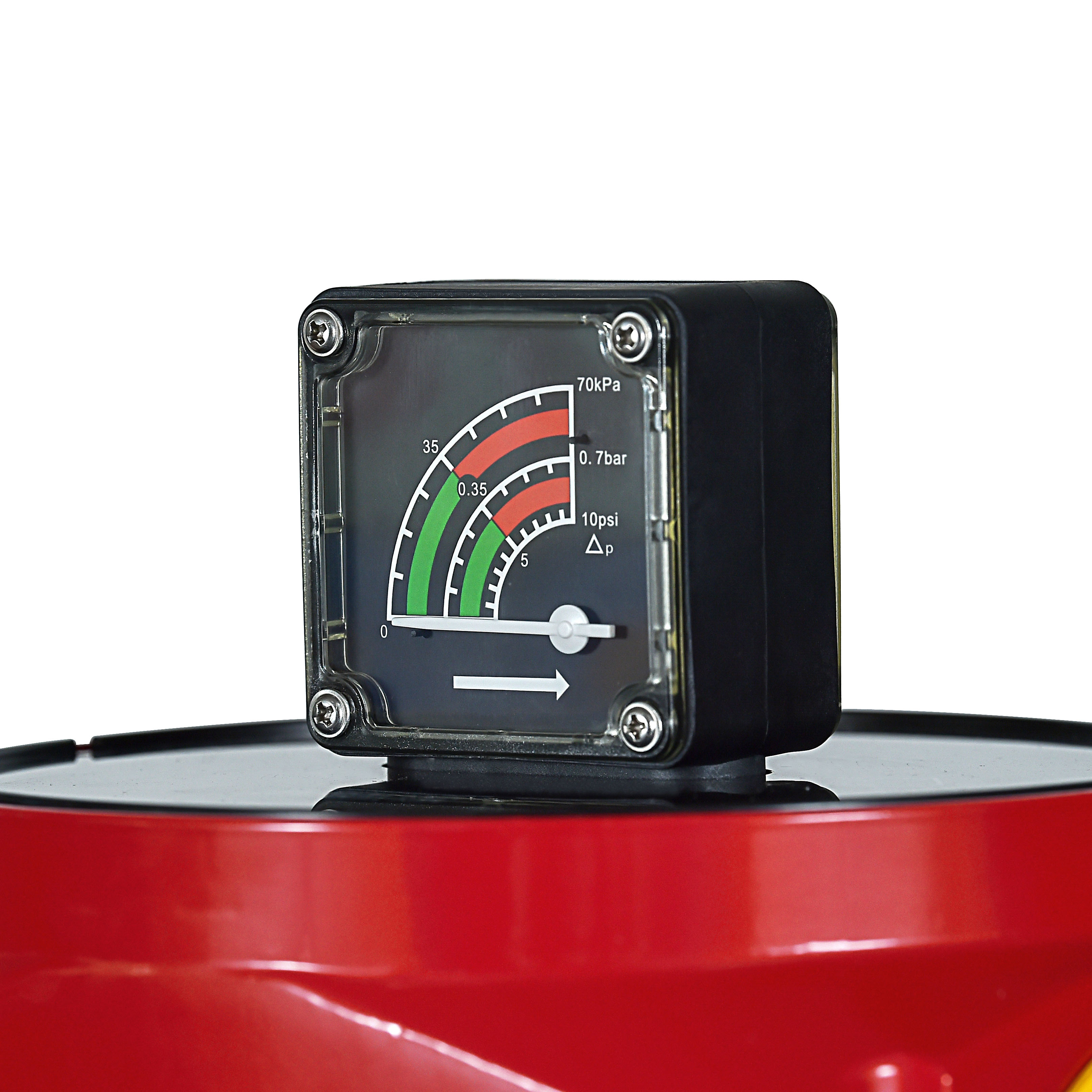

Mechanical Differential Pressure Gauge for Compressed Air Filter
YUKA differential pressure gauge is a measuring instrument that indicates the difference in pressure between two points in a system, rather than measuring absolute pressure at a single point. These gauges are used to monitor system efficiency by tracking pressure drops across equipment like compressed air filters or flow elements, detecting clogs, and measuring liquid or gas levels in closed tanks. Different designs, such as diaphragm or bellows types, achieve this by using a sensor exposed to two separate pressure inputs, with the resulting difference displayed by the pointer.
Using this filter monitoring method keeps operators informed of the current status of their filter. This also encourages them to replace air filter elements once they exceed the recommended operating life.
Contact us now for pricing, bulk discounts, or customized solutions!
📧: sales@hsfiltration.com
🌐 : www.hsfiltration.com
