| Brand: | YUKA |
| Product Type: | Air Filtration |
| Product Series: | YD Series |
| Model No.: | L017/030/058/080/145/220/330/430/620 |
| Flow rate: | 1.0 to 37.2 m³/min |
| Port Size: | N/A |
| Micron rating: | 5 to 0.01 Micron |
| Materials of Construction: | Fiber glass |
| Operating pressure: | 1.5 to 16 bar (22 to 232 psig) |
| Operating Temperature: | 2 to 80 ℃ |
| Element Change Interval: | 6000-8000 hours |
| Accessories: | O ring |
| Origin | Shenzhen, China |

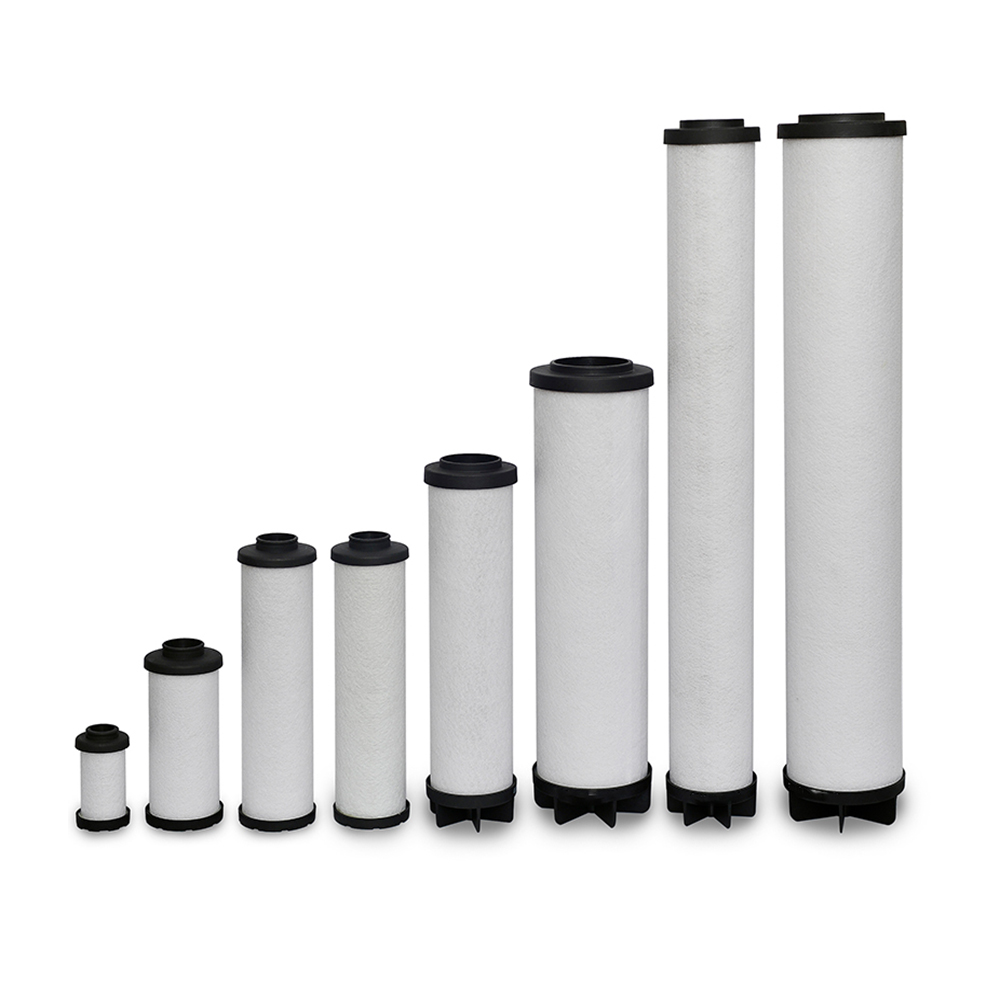

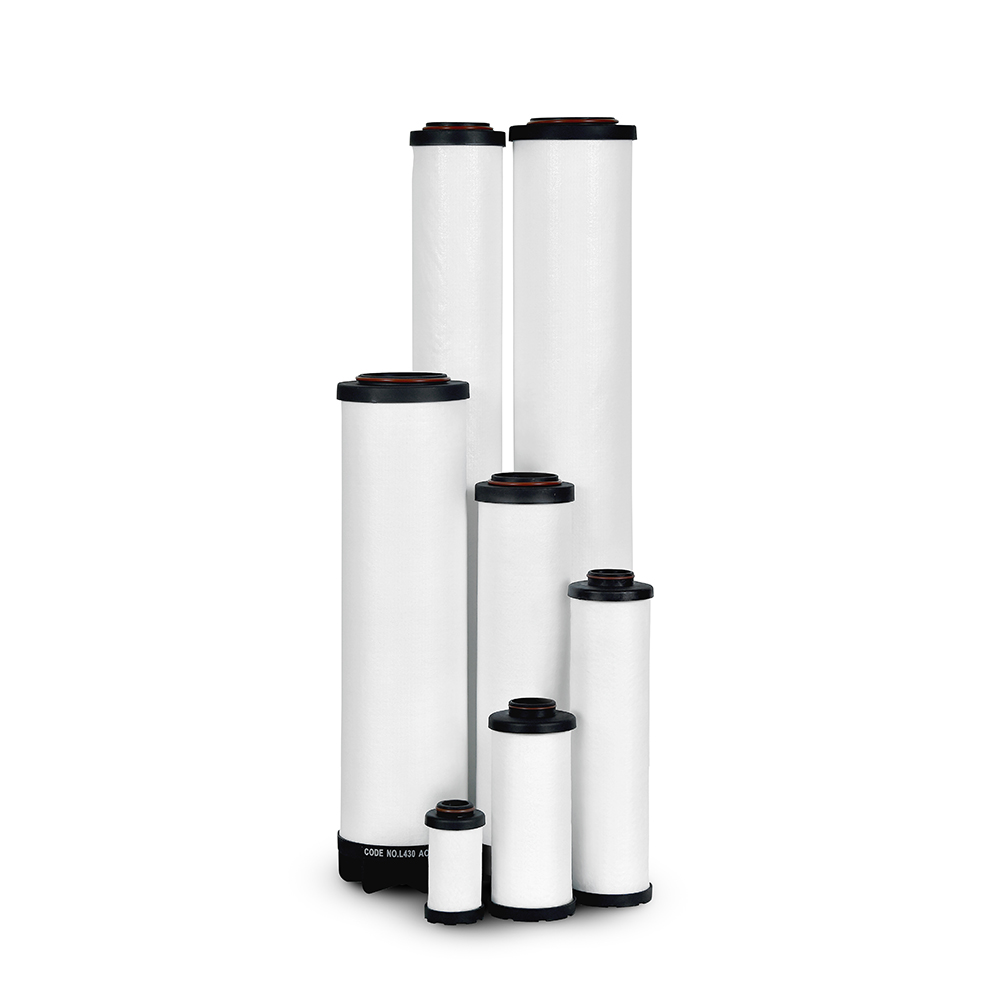

YUKA High Efficiency Air Filter Elements for Compressed Air System | Superior Particle & Oil Vapor Removal Solutions
The compression process introduces lubricant and wear particles into the system, piping distribution and storage tanks foster contaminants in the form of rust, pipe scale and bacteria. As a trusted partner to global air compressor producers and distributors, we’re driven to focus on High Efficiency Air Filter Elements for compressed air system what are engineered to meet the rigorous demands of industrial applications. These air filter elements excel in seven filtration grades: PF, AO, AA,AX,ACS, AR and AAR filters efficiently remove these contaminants to provide the best air purity and protect downstream equipment and your processes, saving costs.
✅ PF- Coarse Pre-Filtration
As a primary filter, particles whose diameter down to 5 μm can be removed, the max. residual oil content is negligible.
✅ AO- High Efficiency General Purpose
High efficiency general protection, dust particles, water mist & oil mist whose diameter down to 1μm can be removed, the residual content of oil mist does not exceed 0.6 mg/m³ (21ºC),1ppm(w), changed every 8000 hours.
✅ AA- High Efficiency Oil Removal Filtration
Dust particles, water mist and oil mist down to 0.01μm can be removed, the residual content of oil mist does not exceed 0.01mg/m³ (21ºC), 0.01ppm(w), changed every 8000 hours.
✅ AX- Ultra High Efficiency Filtration
Ultra-efficient filtration, solid particles, liquids, oil aerosols, odors, and vapors are effectively removed at a high efficiency of 99.99% as small as 0.01 micron, the residual content of oil mist does not exceed 0.001mg/m³ (21ºC),0.001ppm(w), changed every 8000 hours.
✅ ACS- Oil Vapour Reduction
Activated carbon filter element made from thousands of activated carbon granules of sufficient thickness, giving a superior adsorption capacity on a longer time.Oil vapor &odor can be removed, the max. resident content of oil vapor does not exceed 0.003 mg/m³ (21ºC), 0.003 ppm(w), changed when oil vapor detected.
✅ AR- General Purpose Dust Filtration
Dry particle removal down to 1 μm, installed after adsorption air dryer, change every 6000 hours.
✅ AAR- High Efficiency Dust Filtration
Dry particles removal down to 0.01μm can be removed, installed after adsorption air dryer, change every 6000 hours.
Why Partner with Us?
✅ Production facility covers a total of 20,000 square meters.
✅ With over 27+ years of experience in research and development, production, and marketing.
✅ Trusted by leading air compressor brands worldwide.
✅ Reduce your international procurement risks and costs.
✅ Custom OEM Solutions: branding to align with your product line.
Contact us now for pricing, bulk discounts, or customized solutions!
