| Brand | YUKA |
| Product Type | Air Filtration |
| Product Series | YD Series |
| Model No. | YD017 PF |
| Flow rate | 35 CFM (1.0 m³/min) |
| Port Size | 1/2" RC/NPT/BSPT/G |
| Micron rating | 5 Micron |
| Materials of Construction | Die Cast Aluminium |
| Proof pressure | 16 bar ( 232 psig) |
| Operating pressure | 1.5 to 13 bar |
| Operating Temperature | 2 to 80 °C |
| Housing Service Life | 15 years |
| Element Change Interva | 6000 to 8000 hours |
| Compatible Element | L017 PF |
| Accessories | DPI, Sight Glass, Internal Drain |
| Origin | Shenzhen, China |

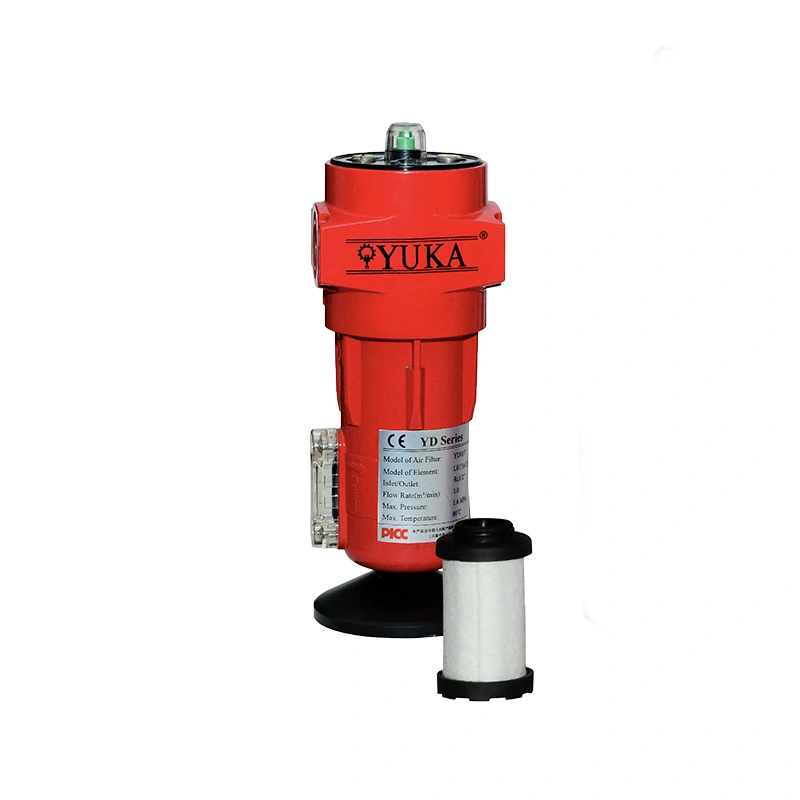

Discover YUKA YD017 PF 1/2" 5 Micron General Purpose Compressed Air Filter 35 CFM with the max.working pressure 16 bar to fit your screw air compressors, refrigeration air dryers, pneumatic tools, sandblasting with quality of air.
As a leading manufacturer of high quality compressed air and gas treatment equipment since 1998 in China, we’re contributed to supply a wide range of general purpose compressed air filters provide reliable, highly efficient protection against solid particles for all purity classes according to ISO 8573-4, reducing the energy consumption, total cost of ownership and adding to your satisfaction.
Key Aspects of Make Us Different with Other Suppliers
General Purpose Filtration
• Particle removal down to 1 micron
• Including coalesced liquid, water and oil
• Air quality requirements of all versions of ISO8573-4
All Aluminum Die-Cast Body
• Manufactured from aluminum alloys through die casting technology
• Electrophoretically treated to extend the life up to fifteen years
Wrapped Air Filter Element
• The filter material is not easily penetrated by fast-impacting solid particles
Connected with Tie-rod
• Filter elements tightly connected through tie-rod at pressure working condition
Accessories Suited
• DPI Shows differential pressure drop
• Sight glass clearly check the level of condensate
• Automatic Float Drain discharge more reliably without air loss
Certificates
• With TUV and in-house test report
Indication Design
• A clear indication of where to tighten and loosen the air filter housing is provided by the design of the lock
Why Us?
• With over 27+ years of experience in research and development, production, and marketing.
• Production facility covers a total of 20000 square meters.
• Help you quickly find long-term and reliable supply resources
• Reduce your international procurement risks and costs
• Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market
• Extensive experience with well-known air compressor brands
