| Brand | YUKA |
| Product Type | Air Filtration |
| Product Series | YD Series |
| Model No. | YD620 AA |
| Flow Rate | 37.2 m³/min (1314 CFM) |
| Port Size | Rc3" |
| Micron Rating | 0.01 Micron |
| Materials of Construction | Die Cast Aluminium |
| Proof Pressure | 16 bar / 232 psig |
| Operating Pressure | 1.5 to 13 bar |
| Operating Temperature | 2 to 80 °C |
| Housing Service Life | 15 years |
| Element Change Interval | 6000-8000 hours |
| Compatible Element | L620 AA |
| Accessories | DPG, Sight Glass, Automatic Drain |
| Origin | Shenzhen, China |

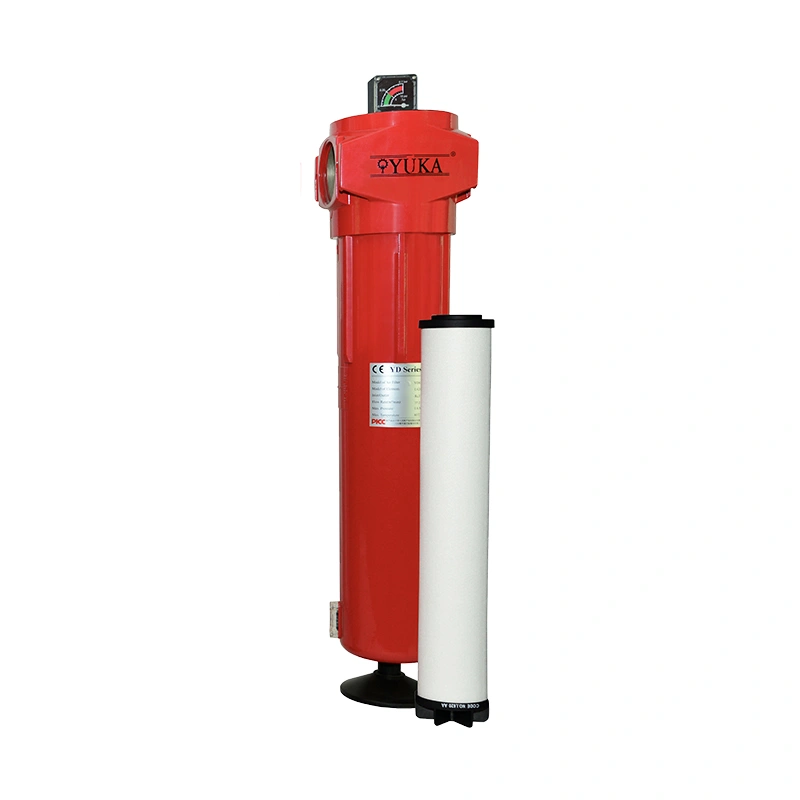

In demanding industrial environments, clean, dry compressed air is non-negotiable. The YUKA YD620 AA 3-Inch 0.01 Micron Air Compressor Filter is engineered to safeguard your pneumatic tools, CNC machines, and critical systems from harmful contaminants. With ultra-fine filtration down to 0.01 microns, this industrial-grade filter removes oil, water aerosols, rust, and particulates, ensuring peak performance and reduced downtime.
At HSAIR, you could discover YUKA YD620 AA 3 inch 0.01 Micron Air Compressor Filter for oil removal with air flow rate 37.2 m³/min to fit your screw air compressors, which is widely in oil and gas, textile industries with quality air.
Air filter element is used for high efficiency oil removal filtration, its borosilicate glass microfiber media that repels oil and water for enhanced coalescing performance that effectively removes dust particles, water mist & oil mist down to 0.01 micron. The residual content of oil mist does not exceed 0.01 mg/m³ (21℃), 1ppm(w), meeting air purity class ISO 8573-2, reducing energy consumption, total cost of ownership and adding to your satisfaction.
Why the YUKA YD620 AA Stands Out
Filtration Grades
• Particle removal down to 0.01 micron
• Including coalesced liquid, water and oil
• Air quality requirements of all versions of ISO8573-1
All Aluminum Die-Cast Body
• Manufactured from aluminum alloys through die casting technology
• Electrophoretically treated to extend the life up to fifteen years
Wrapped Air Filter Element
• The filter material is not easily penetrated by fast-impacting solid particles
Connected with Tie-rod
• Filter elements tightly connected through tie-rod at pressure working condition
Accessories Suited
• DPG Shows differential pressure drop
• Sight glass clearly check the level of condensate
• Automatic Float Drain discharge more reliably without air loss
Certificates
• With TUV and in-house test report
Indication Design
• A clear indication of where to tighten and loosen the air filter housing is provided by the design of the lock
Why Us?
• With over 27+ years of experience in research and development, production, and marketing.
• Production facility covers a total of 20000 square meters.
• Help you quickly find long-term and reliable supply resources
• Reduce your international procurement risks and costs
• Provide you with a wide variety of compressed air filtration and separation equipment to meet the varying needs of the market.
• Extensive experience with well-known air compressor brands.
