| Parameter | Value |
|---|---|
| Brand | YUKA |
| Product Type | Air Separation |
| Product Series | WS Series |
| Model Number | WS50 |
| Flow Rate | 4.5 m³/min |
| Port Size | Rc1" |
| Filtration Rating | N/A |
| Construction Material | Aluminum Alloy |
| Proof Pressure | 16 bar (232 psig) |
| Operating Pressure | 1.5 to 13 bar |
| Operating Temperature | 2 to 80 °C |
| Service Life | 15 years |
| Maintenance Interval | N/A |
| Compatible Filters | N/A |
| Standard Accessories | Sight Glass, Float Ball Drain |
| Manufacturing Origin | Shenzhen, China |

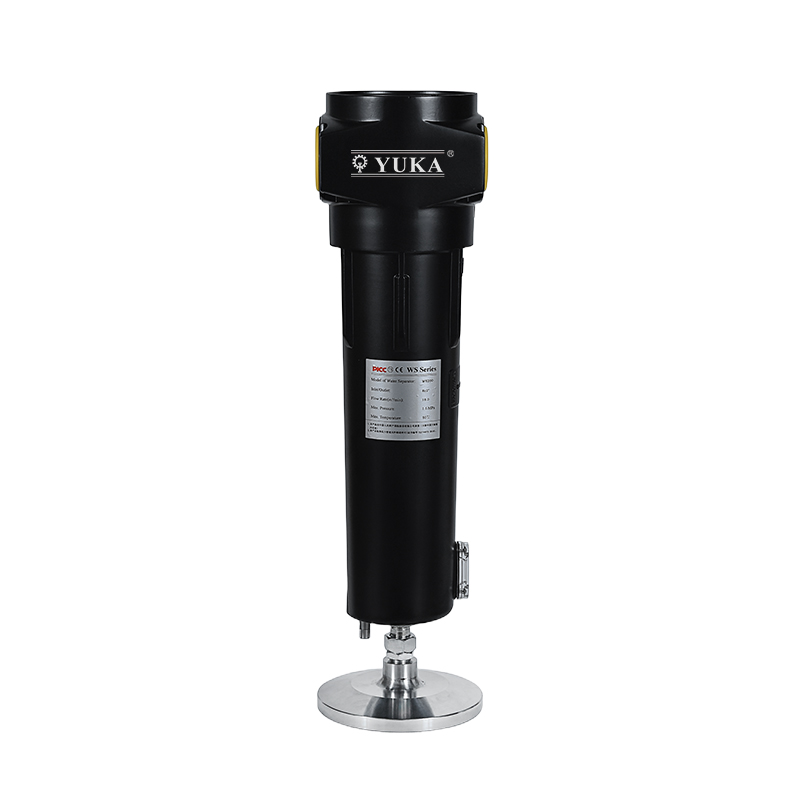

Boost Air Compressor Efficiency with YUKA 2-1/2”WS250 Centrifugal Water Separators – 25.0 m³/min Flow & Auto Drain
WS250 centrifugal separators are designed to remove condensate at the compressor's compressed air discharge point. They're a must energy-efficient functioning of downstream air dryers and air filters. WS250 centrifugal separators are equipped with sight glass and the mechanical reliable float ball condensate drain HAD20B.
Technical Specifications
Port Size: 2-1/2””RC or NPT
Flow Rate: 25..0 m³/min
Max.Proof Pressure: 16 bar
Working Pressure: 1 to 13 bar
Drain Type: Auto-float + manual drain valve
Material: Anodized Aluminum
Key Features
External surface epoxy painted for maximum corrosion
Static rotary vane
Designed without a filter element
Keep 99.9% high efficiency separation
Used to protect the pre-filter of refrigerated and adsorption air dryers from bulk liquid contamination.
For the removal of bulk condensed water and liquid oil
Reduce pipe-rusting conditions from water and the damages to valves, cylinders
High liquid removal efficiencies at all flow conditions
Can be installed in any position of a compressed air system
Lower operational and maintenance costs
Improve the air quality.
