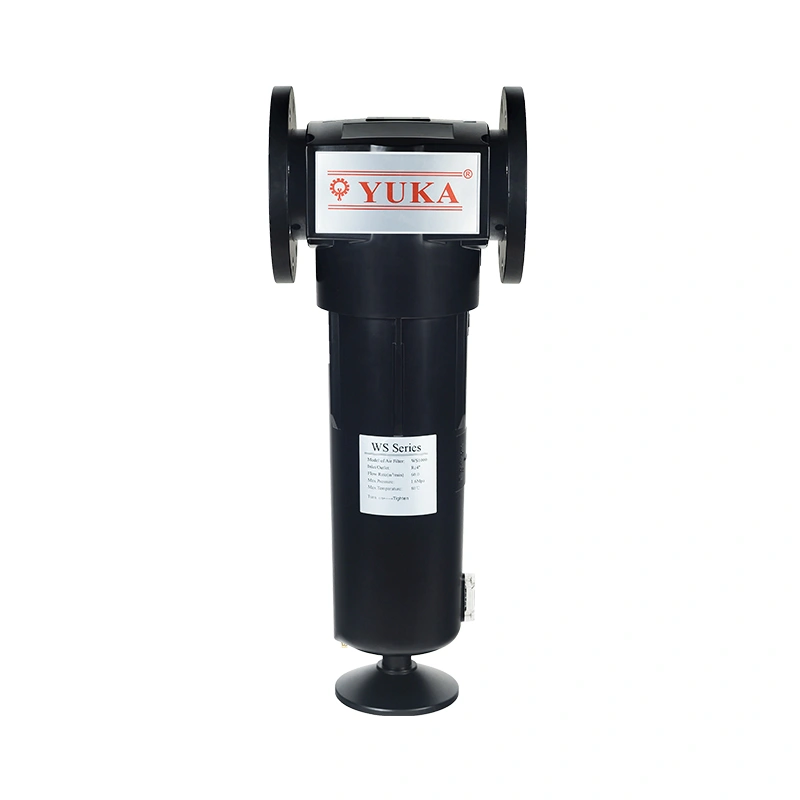

YUKA WS1000F Compressed Air Water Separator with Flange, 60 m³/min, 16 bar

YUKA WS1000F Compressed Air Water Separators Protect Your Compressed Air Systems from Moisture Damage

Compressed air systems contain bulk liquid that causes pipeline corrosion, damage to valves, air cylinders, and tools, and reduces the efficiency of after-air coolers, heat exchangers, and compressed air filters. YUKA WS1000F Compressed Air Water Separators are designed to remove condensate at the compressor's compressed air discharge point. They're a must energy-efficient functioning of downstream air dryers and air filters. Air Separators are equipped with sight glass and the mechanical reliable float ball condensate drain HAD20B. The separation rate is 99.9% at a flow rate of 60 m³/min.

Key Features of YUKA WS1000F

▶ Unmatched Moisture Removal

   - Advanced cyclone technology remove 99.9% of water

   - Prevents corrosion in downstream tools/pneumatic equipment

   - Meets ISO 8573-9 air purity standards

▶ Optimized for High-Volume Operations

 -  60.0 m³/min airflow capacity supports heavy-duty compressors up to 360HP

▶ Proof Max. Working Pressure

  -  Durable aluminum construction withstands 16 bar working pressure without sight glass

▶ Profit-Boosting Value for Your Business

  - High quality promised, Easy integration with screw/piston compressors, dryers, and storage tanks

▶ Low-maintenance Design

 -  Don’t need to change air filter element, reduces customer service costs

▶Certification

 -  CE certifications simplify global distribution

Technical Highlights

Model: WS1000F

Port Size: DN125

Max Flow Rate: 60.0 m³/min

Working Pressure: 16 bar

Initial Pressure Drop: ≤0.07 bar

Drain Type: Automatic float drain

Compliance: CE, Factory in-house Report
