Brand: YUKA
Product Type: Air Filtration
Product Series: YFB Series
Model No.: YFB090
Flow rate: 10.0 m³/min
Port Size: 2" RC/NPT/BSPT
Micron rating: 5 to 0.01 micron
Materials of Construction: Die Cast Aluminum
Operating pressure: 1.5 to 16bar (22 to 232 psig)
Operating Temperature: 2 to 80 ℃
Housing Service Life: 15 years
Element Change Interval: 6000 to 8000 hours
Compatible Element: LFA090 PF/AO/AA/AX/ACS/AR/AAR
Accessories: Manual drain valve
Origin: Shenzhen, China

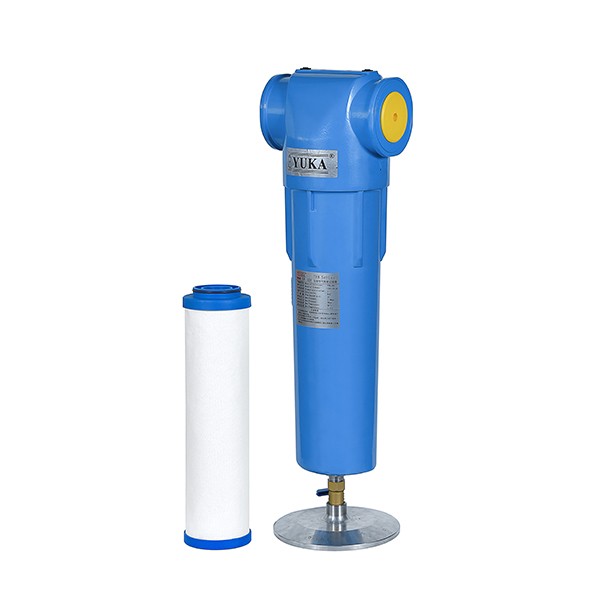

YFB090 10.0 m³/min 2 inch 0.01 Micron Coalescing Air Filters for Air Compressors
Your Coalescing Air Filters Supplier in China
YUKA YFB080 1-1/2" economic 1 micron coalescing air filter with screw thread connection, automatic drain valve, rated up to 232 PSI , installed with Kaeser/Atlas Copco/Ingersoll Rand/Sullair/CP/BOGE/Kobelco/FS/Elgi brand air compressors, protecting your system.
YFB090 2 inch 0.01 Micron Coalescing Air Filters Function
- Remove solid particles down to 0.01 micron, aerosols and oil vapors out of compressed air.
- Protect downstream equipment against the pollutants.
- Supply dry, clean compressed air to directly contact with end-point products.
- Reducing the energy consumption, total cost of ownership and adding to your satisfaction.
YFB090 2 inch 0.01 Micron Coalescing Air Filters Features
- Economic prices with high quality.
- YFB090 air filter housings and elements designed to suit almost industrial applications.
- HV borosilicate glass microfiber media repels oil and water for enhanced coalescing performance that effectively removes particles.
- YFB090 2 inch air filter housings manufactured from aluminum alloys through die casting technology, safety promised.
- Electrophoretically treated to extend the air filter housing life by up to fifteen years.
- A 1000 hours neutral salt spray test for corrosion resistance to ISO 9227:2006, burst pressure test for a 5:1 safety factor.
- Complies with ISO8573-1 air quality requirements.
YFB090 2 inch 0.01 Micron Coalescing Air Filters Applications
- Paint spraying.
- Color sorter for agriculture.
- Sandblasting machines.
- Nitrogen and oxygen generation station.
- Chemical manufacturing.
- Pharmaceutical air/gas filtration and product transfer.
- Laser metal cutting.
- Food and beverages.
- Filtration of air in aseptic packaging.
- Filtration of compressed air of other inert gases.
Product Selection
Below flow rates of compressed air are calculated in rated working pressure of 7 bar (100 psi g) with reference to 20 ℃
Correction Factor
To correctly select an air filter model, the flow rate of the air filter must be adjusted for the minimum operating (inlet) pressure at the point of installation.
Calculate the adjust filtration capacity:
1.Minimum Filtration Capacity = Compressed Air Flow Rate x pressure correction factor rate.
2.Using the minimum filtration capacity, select an air filter model from the flow rate tables above (air filter selected must have a flow rate equal to or greater than the minimum filtration capacity).
