WS50 Cyclone Water Separators 4.5m³/min for Water Removal

Brand: YUKA
Product Type: Air Separation
Product Series: WS Series
Model No.: WS50
Flow rate: 4.5 m³/min
Port Size: Rc1
Micron rating: N/A
Materials of Construction: Aluminum Alloy
Operating pressure: 1.5 to 16 bar (22 to 232 psig)
Operating Temperature: 2 to 80 ℃
Housing Service Life: 15 years
Element Change Interval: N/A
Compatible Element: N/A
Accessories: Sight Glass, Float Ball Drain, Manual Drain Valve
Origin: Shenzhen, China

EMAIL

WS 50 Air Compressor Water Separators 4.5m³/min for Water Removal


Over 99% of bulk water can be easily and economically removed by installing a YUKA WS50 water separator. YUKA as a leading manufacturer of high quality compressed air water separators since 1998 in China. We could offers 1/2", 3/4", 1" , 2",2-1/2", 3",4" moisture water separators for screw air compressors and compressed air dryers.



WS50 Water Separator Features


- Static rotary vane

- Designed without a filter element

- For the removal of bulk condensed water and liquid oil

- Keep 99.9% high efficiency separation

- Used to protect the pre-filter of refrigerated and adsorption air dryers from bulk liquid contamination.

- Reduce pipe-rusting conditions from water and the damages to valves, cylinders

- High liquid removal efficiencies at all flow conditions

- Can be installed in any position of a compressed air system

- Lower operational and maintenance costs

- Tested in accordance with ISO8573-9

- Improve the air quality.



Product Selection


Below flow rates of compressed air are calculated in rated working pressure of 7 bar (100 psi g) with reference  to 20 ℃.

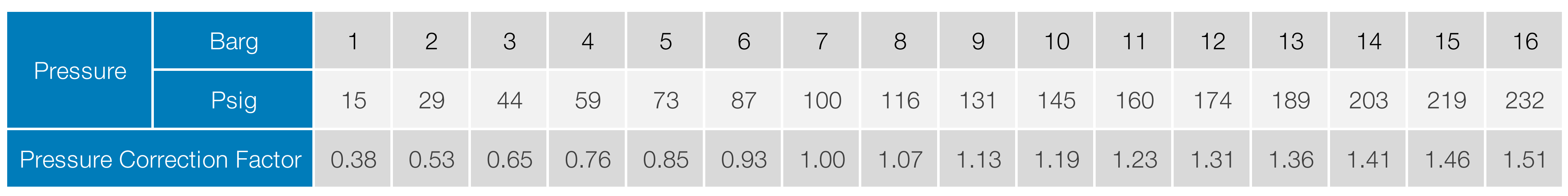

Correction Factor


To correctly select a water separator model, the flow rate of water separator must be adjusted for the minimum operating

 (inlet) pressure at the point of installation.

Calculate the adjust capacity:

1.Minimum Separation Capacity = Compressed Air Flow Rate x pressure correction factor rate.

2.Using the minimum filtration capacity, select a water separator model from the flow rate tables above ( water separator

selected must have a flow rate equal to or greater than the minimum separation capacity).
